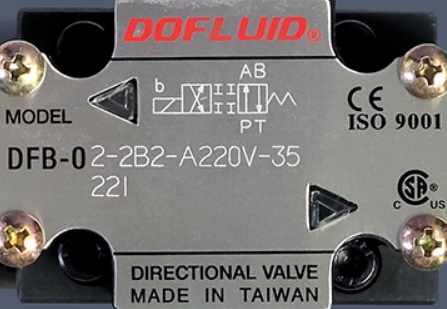

5/2WAY 싱글 솔레노이드밸브

Port size : 1/4"
l/min flow : 80 (21.1 gpm)
Max pressure : 35 MPa(5070 psi)
Max back pressure : 21 MPa(3040 psi)
사용전압(voltage) :

DFB-02-2B2-D12-35 : DC12V
DFB-02-2B2-D24-35 : DC24V
DFB-02-2B2-A220 : AC220V

유체 온도 범위 : +5도 ~ +60도

solenoid coil type : 2BF-D1 (DC12V)
Current : 2.5A
Holding electric power : 30W
permissible voltage range : 10.8 ~ 13.2 V

solenoid coil type : 2BF-D2 (DC24V)
Current : 1.25A
Holding electric power : 30W
permissible voltage range : 21.6 ~ 26.4 V

solenoid coil type : 2BH-C2/C4 (AC220V/60Hz)
Staring Current : 1.0A
Holding Current : 0.19A
Holding electric power : 22W
permissible voltage range : 180 ~ 240 V

connection : Joint Box type/plug-in coils

아래 제품을 대체하여 사용이 가능합니다.
nachi
 - SS-G01-A3X-R-C2 (AC200V)
 - SS-G01-A3X-R-D1 (DC12V)
 - SS-G01-A3X-R-D2 (DC24V)
